    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    Ask Lasest Price
    Brand Name : SUMA
    Model Number : B200
    Price : $10-30
    • Product Details
    • Company Profile

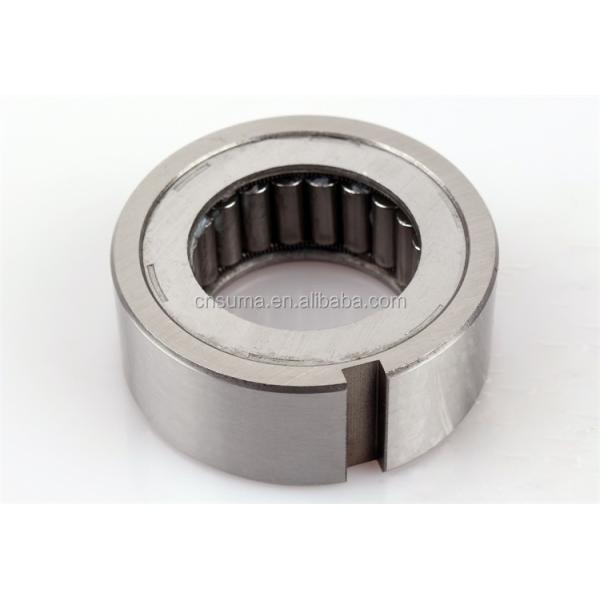

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    Wholesale One Way Clutch (B200) Sprag Bearing Freewheel

    Product Description

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15B200 Series One Way Clutch Sprag Bearing Freewheel GCr15


    Features

    Type B200 is a non bearing supported sprag type freewheel.

    The sprags run directly on the shaft provided by the user. Bearings are required to support axial and radial loads.


    Data Sheet

    Details
    ItemB200 Series
    MaterialGCr15
    Max. Idexing150 cycle/min
    Key Way4X2.5 - 12X4.5
    Outer Diameter40 - 125 mm
    Weight0.23-2.40 kg
    Drag Torque0.1 - 0.39 Nm
    ApplicationElevator, Industrial Machines

    Different Sizes For Your Reference


    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15


    Model

    Torque Capacity

    (N.m)

    Drag Torque

    (N.m)

    Max .Overrunning (r/min)

    Max.Idexing (cycle/min)

    A(+0 to -0.6)


    B


    Keyway

    With JIS Bearing No.

    Shaft Dia. C(+0 to -0.025)

    Weight

    (kg)

    Shaft

    Outer Race

    B203

    39.2

    0.10

    2400

    500

    150

    25.0

    40(-0.014-0.039)

    4X2.5

    6203

    16.510

    0.23

    B204

    58.8

    0.10

    2400

    500

    150

    25.0

    47(-0.014-0.039)

    5X3

    6204

    18.796

    0.34

    B205

    98

    0.20

    1800

    400

    150

    25.0

    52(0.017-0.042)

    5X3

    6205

    23.622

    0.45

    B206

    235

    0.20

    1800

    350

    150

    28.0

    62(-0.017-0.042)

    7X4

    6206

    32.766

    0.68

    B207

    372

    0.20

    1800

    300

    150

    28.0

    72(-0.017—0.042)

    7X4

    6207

    42.088

    0.80

    B208

    549

    0.20

    1800

    200

    150

    32.0

    80(-0.017-0.042)

    10X4.5

    6208

    46.761

    0.91

    B209

    549

    0.20

    1800

    200

    150

    32.0

    85(-0.020-0.045)

    10X4.5

    6209

    46.761

    0.95

    B210

    784

    0.29

    1200

    200

    150

    32.0

    90(-0.020-0.045)

    10X4.5

    6210

    56.109

    1.00

    B211

    784

    0.29

    1200

    200

    150

    32.0

    100(-0.020-0.050)

    10X4.5

    6211

    56.109

    1.40

    B212

    1230

    0.29

    1200

    180

    150

    42.0

    110(-0.020-0.050)

    10X4.5

    6212

    70.029

    1.80

    B213

    1230

    0.29

    1200

    180

    150

    42.0

    120(-0.020-0.050)

    10X4.5

    6213

    70.029

    2.30

    B214

    1390

    0.39

    180

    180

    150

    42.0

    125(-0.024-0.060)

    12X4.5

    6214

    79.356

    2.4

    Detailed Image

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15B200 Series One Way Clutch Sprag Bearing Freewheel GCr15B200 Series One Way Clutch Sprag Bearing Freewheel GCr15B200 Series One Way Clutch Sprag Bearing Freewheel GCr15B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    Certifications

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    Company Information

    Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology. B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

    Our Advantages
    1. Advanced producing equipment.
    2. Strict requirement for the raw material
    3. Complete&perfect process flow
    4. Good quality of each batch of the product
    5. Different grades of price for different quality

    Cooperation

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    Production&Text

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    PackingShipping

    B200 Series One Way Clutch Sprag Bearing Freewheel GCr15

    FAQ

    Q: Why do we choose your company?

    A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.

    Q:What is the delivery time?

    A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.

    Q: What is your payment term?

    A: Our payment term include L/C, T/T, Western Union, Paypal etc.

    Q: Can you send bearing samples first?

    A: Yes, we can send bearing samples of one way clutch bearing to check quality first.

    If you have any needs,pls contact me at any time!
